1. Safe Args (Fragment 간 데이터 전달)

Navigation Component의 Safe Args 플러그인을 사용하여 Fragment 간에 데이터를 안전하게 전달

1.1. 사전 설정 (Gradle)

Safe Args 플러그인을 사용하기 위해 build.gradle 파일 수정 필요.

Project 수준 build.gradle

buildscript {
    dependencies {
        val nav_version = "2.9.6"
        classpath("androidx.navigation:navigation-safe-args-gradle-plugin:$nav_version")
    }
}

App 수준 build.gradle

plugins {
    id("androidx.navigation.safeargs.kotlin")
}

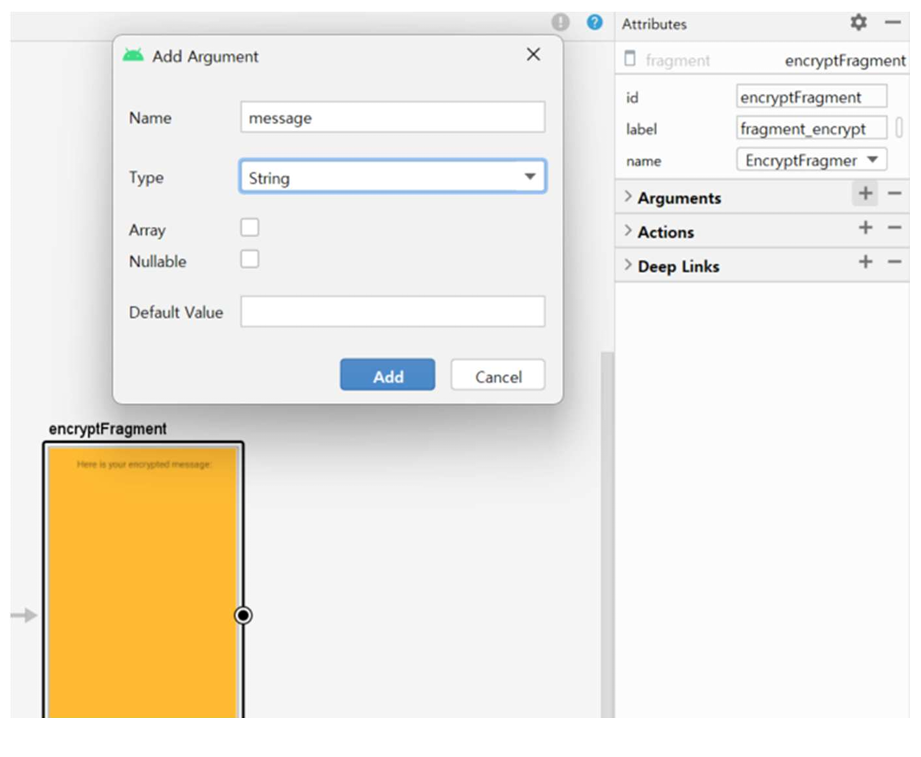

1.2. Navigation Graph 설정 (Argument 추가)

데이터를 받는 쪽(EncryptFragment)에 Argument를 정의해야 함.

설정 항목:
- Name: 변수명 (예: message)
- Type: 데이터 타입 (예: String)
- Default Value: 기본값 설정 가능

XML 코드 예시:

<fragment android:id="@+id/encryptFragment" ...>
    <argument
        android:name="message"
        app:argType="string" />
</fragment>

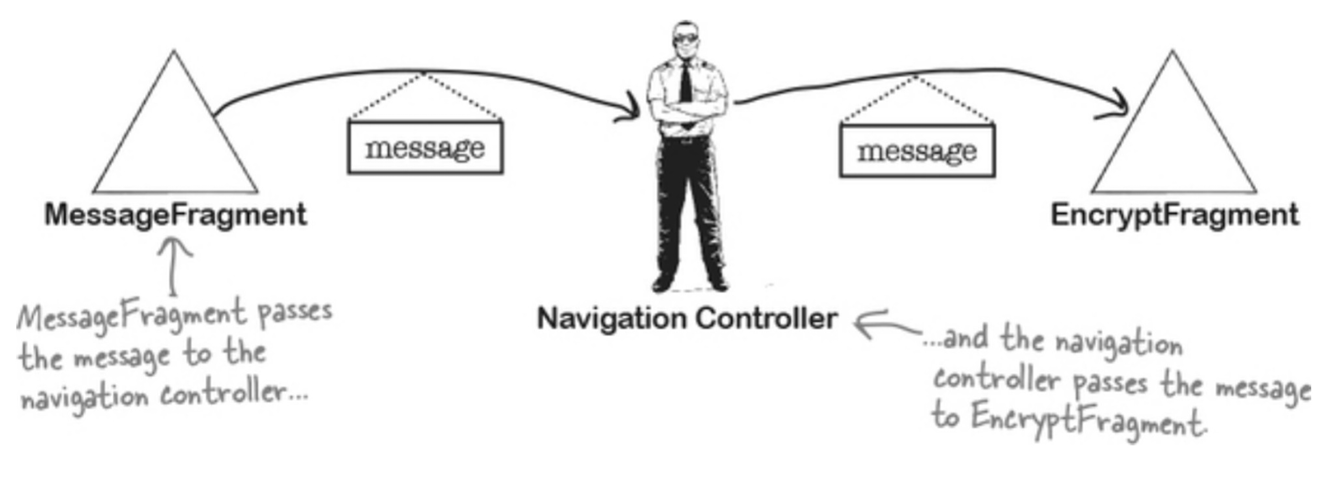

1.3. 데이터 송신 (Sender: MessageFragment)

Safe Args가 활성화되면 송신 측 Fragment의 이름 뒤에 Directions가 붙은 클래스(예: MessageFragmentDirections)가 자동 생성됨.

구현 순서:
1. Directions 클래스를 사용하여 Action 객체 생성 및 데이터 전달.
2. NavController를 통해 해당 Action으로 이동.

Kotlin 코드:

bindingFragMessage.btnNext.setOnClickListener {
    val navController = Navigation.findNavController(view)
    val message = bindingFragMessage.edtMessage.text.toString()

    // Action 객체 생성 및 데이터(message) 포함
    val action = MessageFragmentDirections.actionMessageFragmentToEncryptFragment(message)

    // Navigation Controller를 통해 이동
    navController.navigate(action)
}

1.4. 데이터 수신 (Receiver: EncryptFragment)

수신 측 Fragment의 이름 뒤에 Args가 붙은 클래스(예: EncryptFragmentArgs)가 자동 생성됨

구현 방법: fromBundle(requireArguments()) 메서드를 사용하여 전달받은 인자를 추출.

Kotlin 코드:

override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
    super.onViewCreated(view, savedInstanceState)

    // 전달받은 메시지 추출
    val rxMessage: String = EncryptFragmentArgs.fromBundle(requireArguments()).message

    // 텍스트 뷰에 역순으로 표시 (예제 로직)
    bindingFragEncrypt.encryptedMessage.setText(rxMessage.reversed())
}

2. Back Stack 관리 (뒤로 가기 동작 변경)

앱 탐색 시 쌓이는 Back Stack을 조작하여 뒤로 가기 버튼을 눌렀을 때의 이동 경로를 변경하는 방법을 설명함.

2.1.Back Stack 개념

구조: 방문한 Fragment들이 스택(Stack) 구조로 쌓임 (LIFO).
기본 동작: 뒤로 가기 버튼 클릭 시 최상단 Fragment가 pop 되고 바로 아래 Fragment가 표시됨
문제 상황: Welcome -> Message -> Encrypt 순으로 이동했을 때, Encrypt에서 뒤로 가기를 누르면 Message가 아닌 Welcome으로 바로 가고 싶은 경우 발생.

2.2. popUpTo 속성 활용

Action 정의 시 popUpTo 속성을 사용하여 Back Stack에서 특정 지점까지 Fragment를 제거할 수 있음.

주요 속성:
- app:popUpTo: 지정한 ID의 Fragment가 나올 때까지 스택 위의 Fragment들을 제거함.
- app:popUpToInclusive: true일 경우 popUpTo로 지정한 Fragment까지 함께 제거함. false일 경우 지정한 Fragment는 유지함.
설정 예시 (Message -> Encrypt 이동 시):
```
<action
    android:id="@+id/action_messageFragment_to_encryptFragment"
    app:destination="@id/encryptFragment"
    app:popUpTo="@id/welcomeFragment"
    app:popUpToInclusive="false" />
```
- 설명: EncryptFragment로 이동하면서 WelcomeFragment 위에 있는 모든 Fragment(MessageFragment)를 스택에서 제거함. 따라서 Encrypt에서 뒤로 가기 시 Welcome으로 이동.

2.3. 속성 값 조합에 따른 동작 비교

Message -> Encrypt 이동 시 아래 두 설정은 동일한 결과(MessageFragment가 스택에서 사라짐)를 가짐.

popUpTo Inclusive 사용:

XML

app:popUpTo="@id/messageFragment"
app:popUpToInclusive="true"

popUpTo Non-Inclusive 사용:

XML

app:popUpTo="@id/welcomeFragment"
app:popUpToInclusive="false"

3. 실습 예제 (AnotherFragment 활용)

3.1.시나리오 1: Message -> Another 이동 후 Back

목표: 뒤로 가기 시 MessageFragment를 건너뛰고 WelcomeFragment로 이동.
Action 설정:또는 popUpTo="@id/welcomeFragment", popUpToInclusive="false" 사용 가능.

XML

<action
    android:id="@+id/action_messageFragment_to_anotherFragment"
    app:destination="@id/anotherFragment"
    app:popUpTo="@id/messageFragment"
    app:popUpToInclusive="true" />

3.2. 시나리오 2: Encrypt -> Another 이동 후 Back

목표: 뒤로 가기 시 EncryptFragment를 건너뛰고 MessageFragment로 이동.
Action 설정:또는 popUpTo="@id/messageFragment", popUpToInclusive="false" 사용 가능.

XML

<action
    android:id="@+id/action_encryptFragment_to_anotherFragment"
    app:destination="@id/anotherFragment"
    app:popUpTo="@id/encryptFragment"
    app:popUpToInclusive="true" />

4. 최종 코드

// MainActivity.kt

package com.cookandroid.navigationcomponentexcercise

import android.os.Bundle
import androidx.activity.enableEdgeToEdge
import androidx.appcompat.app.AppCompatActivity
import androidx.core.view.ViewCompat
import androidx.core.view.WindowInsetsCompat
import com.cookandroid.navigationcomponentexcercise.databinding.ActivityMainBinding
class MainActivity : AppCompatActivity() {

    private lateinit var bindingMain : ActivityMainBinding

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
//        enableEdgeToEdge()
//        setContentView(R.layout.activity_main)
//        ViewCompat.setOnApplyWindowInsetsListener(findViewById(R.id.main)) { v, insets ->
//            val systemBars = insets.getInsets(WindowInsetsCompat.Type.systemBars())
//            v.setPadding(systemBars.left, systemBars.top, systemBars.right, systemBars.bottom)
//            insets
//        }

        bindingMain = ActivityMainBinding.inflate(layoutInflater)
        setContentView(bindingMain.root)
    }
}

// WelcomeFragment.kt

package com.cookandroid.navigationcomponentexcercise

import android.os.Bundle
import androidx.fragment.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import androidx.navigation.NavController
import androidx.navigation.Navigation
import com.cookandroid.navigationcomponentexcercise.databinding.FragmentWelcomeBinding

// TODO: Rename parameter arguments, choose names that match
// the fragment initialization parameters, e.g. ARG_ITEM_NUMBER
private const val ARG_PARAM1 = "param1"
private const val ARG_PARAM2 = "param2"

/**
 * A simple [Fragment] subclass.
 * Use the [WelcomeFragment.newInstance] factory method to
 * create an instance of this fragment.
 */
class WelcomeFragment : Fragment() {
    // TODO: Rename and change types of parameters

    private lateinit var bindingWelcomeFragment: FragmentWelcomeBinding

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
    }

    override fun onCreateView(
        inflater: LayoutInflater,
        container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View? {
        bindingWelcomeFragment = FragmentWelcomeBinding.inflate(layoutInflater)
        return bindingWelcomeFragment.root

    }

    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)

        bindingWelcomeFragment.BtnStart.setOnClickListener(object : View.OnClickListener{
            override fun onClick(v: View?) {
                val navController : NavController  = Navigation.findNavController(view)

                navController.navigate(R.id.action_welcomeFragment_to_messageFragment)
            }
        })
    }

//    private var param1: String? = null
//    private var param2: String? = null
//
//    override fun onCreate(savedInstanceState: Bundle?) {
//        super.onCreate(savedInstanceState)
//        arguments?.let {
//            param1 = it.getString(ARG_PARAM1)
//            param2 = it.getString(ARG_PARAM2)
//        }
//    }
//
//    override fun onCreateView(
//        inflater: LayoutInflater, container: ViewGroup?,
//        savedInstanceState: Bundle?
//    ): View? {
//        // Inflate the layout for this fragment
//        return inflater.inflate(R.layout.fragment_welcome, container, false)
//    }
//
//    companion object {
//        /**
//         * Use this factory method to create a new instance of
//         * this fragment using the provided parameters.
//         *
//         * @param param1 Parameter 1.
//         * @param param2 Parameter 2.
//         * @return A new instance of fragment WelcomeFragment.
//         */
//        // TODO: Rename and change types and number of parameters
//        @JvmStatic
//        fun newInstance(param1: String, param2: String) =
//            WelcomeFragment().apply {
//                arguments = Bundle().apply {
//                    putString(ARG_PARAM1, param1)
//                    putString(ARG_PARAM2, param2)
//                }
//            }
//    }
}

// MessageFragment.kt

package com.cookandroid.navigationcomponentexcercise

import android.os.Bundle
import androidx.fragment.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import androidx.navigation.NavController
import androidx.navigation.Navigation
import com.cookandroid.navigationcomponentexcercise.databinding.FragmentMessageBinding

// TODO: Rename parameter arguments, choose names that match
// the fragment initialization parameters, e.g. ARG_ITEM_NUMBER
private const val ARG_PARAM1 = "param1"
private const val ARG_PARAM2 = "param2"

/**
 * A simple [Fragment] subclass.
 * Use the [MessageFragment.newInstance] factory method to
 * create an instance of this fragment.
 */
class MessageFragment : Fragment() {

    private lateinit var bindingMessageFragment : FragmentMessageBinding

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
    }

    override fun onCreateView(
        inflater: LayoutInflater,
        container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View? {
        bindingMessageFragment = FragmentMessageBinding.inflate(layoutInflater)
        return bindingMessageFragment.root

    }

    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)

        bindingMessageFragment.btnNext.setOnClickListener(object : View.OnClickListener{
            override fun onClick(v: View?) {
                // TODO: 다음 화면으로 이동하는 코드 추가
                val navController : NavController  = Navigation.findNavController(view) // navController에 message 전달
                val message : String = bindingMessageFragment.edtMessage.text.toString()
                val action = MessageFragmentDirections.actionMessageFragmentToEncryptFragment(message)
                navController.navigate(action)
            }
        })

        bindingMessageFragment.btnAnother.setOnClickListener(object : View.OnClickListener{
            override fun onClick(v: View?) {
                // TODO: 다음 화면으로 이동하는 코드 추가
                val navController : NavController  = Navigation.findNavController(view) // navController에 message 전달
                val message : String = bindingMessageFragment.edtMessage.text.toString()
                val action = MessageFragmentDirections.actionMessageFragmentToAnotherFragment(message)
                navController.navigate(action)
            }
        })
    }
    // TODO: Rename and change types of parameters
//    private var param1: String? = null
//    private var param2: String? = null
//
//    override fun onCreate(savedInstanceState: Bundle?) {
//        super.onCreate(savedInstanceState)
//        arguments?.let {
//            param1 = it.getString(ARG_PARAM1)
//            param2 = it.getString(ARG_PARAM2)
//        }
//    }
//
//    override fun onCreateView(
//        inflater: LayoutInflater, container: ViewGroup?,
//        savedInstanceState: Bundle?
//    ): View? {
//        // Inflate the layout for this fragment
//        return inflater.inflate(R.layout.fragment_message, container, false)
//    }
//
//    companion object {
//        /**
//         * Use this factory method to create a new instance of
//         * this fragment using the provided parameters.
//         *
//         * @param param1 Parameter 1.
//         * @param param2 Parameter 2.
//         * @return A new instance of fragment MessageFragment.
//         */
//        // TODO: Rename and change types and number of parameters
//        @JvmStatic
//        fun newInstance(param1: String, param2: String) =
//            MessageFragment().apply {
//                arguments = Bundle().apply {
//                    putString(ARG_PARAM1, param1)
//                    putString(ARG_PARAM2, param2)
//                }
//            }
//    }
}

// EncryptFragment.kt

package com.cookandroid.navigationcomponentexcercise

import android.os.Bundle
import androidx.fragment.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import com.cookandroid.navigationcomponentexcercise.databinding.FragmentEncryptBinding

// TODO: Rename parameter arguments, choose names that match
// the fragment initialization parameters, e.g. ARG_ITEM_NUMBER
private const val ARG_PARAM1 = "param1"
private const val ARG_PARAM2 = "param2"

/**
 * A simple [Fragment] subclass.
 * Use the [EncryptFragment.newInstance] factory method to
 * create an instance of this fragment.
 */
class EncryptFragment : Fragment() {
    // TODO: Rename and change types of parameters

    private lateinit var bindingFragEncrpt: FragmentEncryptBinding

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
    }

    override fun onCreateView(
        inflater: LayoutInflater,
        container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View? {
        // return super.onCreateView(inflater, container, savedInstanceState)
        bindingFragEncrpt = FragmentEncryptBinding.inflate(layoutInflater)
        return bindingFragEncrpt.root
    }

    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)

        val rxMessage : String = EncryptFragmentArgs.fromBundle(requireArguments()).message
        bindingFragEncrpt.encryptedMessage.setText(rxMessage.reversed())
    }
//    private var param1: String? = null
//    private var param2: String? = null
//
//    override fun onCreate(savedInstanceState: Bundle?) {
//        super.onCreate(savedInstanceState)
//        arguments?.let {
//            param1 = it.getString(ARG_PARAM1)
//            param2 = it.getString(ARG_PARAM2)
//        }
//    }
//
//    override fun onCreateView(
//        inflater: LayoutInflater, container: ViewGroup?,
//        savedInstanceState: Bundle?
//    ): View? {
//        // Inflate the layout for this fragment
//        return inflater.inflate(R.layout.fragment_encrypt, container, false)
//    }
//
//    companion object {
//        /**
//         * Use this factory method to create a new instance of
//         * this fragment using the provided parameters.
//         *
//         * @param param1 Parameter 1.
//         * @param param2 Parameter 2.
//         * @return A new instance of fragment EncryptFragment.
//         */
//        // TODO: Rename and change types and number of parameters
//        @JvmStatic
//        fun newInstance(param1: String, param2: String) =
//            EncryptFragment().apply {
//                arguments = Bundle().apply {
//                    putString(ARG_PARAM1, param1)
//                    putString(ARG_PARAM2, param2)
//                }
//            }
//    }
}

// AnotherFragment.kt
package com.cookandroid.navigationcomponentexcercise

import android.os.Bundle
import androidx.fragment.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import com.cookandroid.navigationcomponentexcercise.databinding.FragmentAnotherBinding
import com.cookandroid.navigationcomponentexcercise.databinding.FragmentEncryptBinding

// TODO: Rename parameter arguments, choose names that match
// the fragment initialization parameters, e.g. ARG_ITEM_NUMBER
private const val ARG_PARAM1 = "param1"
private const val ARG_PARAM2 = "param2"

/**
 * A simple [Fragment] subclass.
 * Use the [AnotherFragment.newInstance] factory method to
 * create an instance of this fragment.
 */
class AnotherFragment : Fragment() {
    // TODO: Rename and change types of parameters

    private lateinit var bindingFragAnother : FragmentAnotherBinding

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
    }

    override fun onCreateView(
        inflater: LayoutInflater,
        container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View? {
        // return super.onCreateView(inflater, container, savedInstanceState)
        bindingFragAnother = FragmentAnotherBinding.inflate(layoutInflater)
        return bindingFragAnother.root
    }

    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)

        val rxMessage : String = AnotherFragmentArgs.fromBundle(requireArguments()).message
        bindingFragAnother.anotherMessage.setText(rxMessage)
    }

//    private var param1: String? = null
//    private var param2: String? = null
//
//    override fun onCreate(savedInstanceState: Bundle?) {
//        super.onCreate(savedInstanceState)
//        arguments?.let {
//            param1 = it.getString(ARG_PARAM1)
//            param2 = it.getString(ARG_PARAM2)
//        }
//    }
//
//    override fun onCreateView(
//        inflater: LayoutInflater, container: ViewGroup?,
//        savedInstanceState: Bundle?
//    ): View? {
//        // Inflate the layout for this fragment
//        return inflater.inflate(R.layout.fragment_another, container, false)
//    }
//
//    companion object {
//        /**
//         * Use this factory method to create a new instance of
//         * this fragment using the provided parameters.
//         *
//         * @param param1 Parameter 1.
//         * @param param2 Parameter 2.
//         * @return A new instance of fragment AnotherFragment.
//         */
//        // TODO: Rename and change types and number of parameters
//        @JvmStatic
//        fun newInstance(param1: String, param2: String) =
//            AnotherFragment().apply {
//                arguments = Bundle().apply {
//                    putString(ARG_PARAM1, param1)
//                    putString(ARG_PARAM2, param2)
//                }
//            }
//    }
}

// strings.xml
<resources>
    <string name="app_name">NavigationComponentExcercise</string>
    <!-- TODO: Remove or change this placeholder text -->
    <string name="hello_blank_fragment">Hello blank fragment</string>

    <string name="welcome_text">Welcome to the Secret Message app!
    Use this app to encrypt a secret message.
    Click on the Start button to begin</string>

    <string name="start">Start</string>

    <string name="message_hint">Please enter your secret message</string>

    <string name="next">Next</string>

    <string name="encrypt_text">Here is your encrypted message:</string>

    <string name="another_text">Here is your anothor message:</string>

    <string name="start_another">START ANOTHERFRAG</string>

</resources>

// activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<androidx.fragment.app.FragmentContainerView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/fragment_container_view"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    android:name="androidx.navigation.fragment.NavHostFragment"
    app:navGraph="@navigation/nav_graph"
    app:defaultNavHost="true"
    tools:context=".MainActivity">


</androidx.fragment.app.FragmentContainerView>

// fragment_welcome.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center_horizontal"
    tools:context=".WelcomeFragment">

    <!-- TODO: Update blank fragment layout -->
    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:layout_marginTop="20dp"
        android:textSize="20sp"
        android:text="@string/welcome_text"/>

    <Button
        android:id="@+id/BtnStart"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="30dp"
        android:text="@string/start"/>

</LinearLayout>

// fragment_message.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:padding="16dp"
    android:gravity="center_horizontal"
    tools:context=".MessageFragment">

    <!-- TODO: Update blank fragment layout -->
    <EditText
        android:id="@+id/edtMessage"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:hint="@string/message_hint"
        android:inputType="textMultiLine"
        android:textSize="20sp"/>

    <Button
        android:id="@+id/btnNext"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/next"
        android:layout_marginTop="20dp"/>

    <Button
        android:id="@+id/btnAnother"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/start_another"
        android:layout_marginTop="20dp"/>

</LinearLayout>

// fragment_encrypt.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center_horizontal"
    tools:context=".EncryptFragment">

    <!-- TODO: Update blank fragment layout -->
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp"
        android:textSize="20dp"
        android:text="@string/encrypt_text"/>

    <TextView
        android:id="@+id/encrypted_message"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp"
        android:textSize="20dp"/>

</LinearLayout>

// fragment_another.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center_horizontal"
    tools:context=".AnotherFragment">

    <!-- TODO: Update blank fragment layout -->
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp"
        android:textSize="20dp"
        android:text="@string/another_text"/>

    <TextView
        android:id="@+id/another_message"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp"
        android:textSize="20dp"/>


</LinearLayout>

// nav_graph.xml
<?xml version="1.0" encoding="utf-8"?>
<navigation xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/nav_graph"
    app:startDestination="@id/welcomeFragment">

    <fragment
        android:id="@+id/welcomeFragment"
        android:name="com.cookandroid.navigationcomponentexcercise.WelcomeFragment"
        android:label="fragment_welcome"
        tools:layout="@layout/fragment_welcome" >
        <action
            android:id="@+id/action_welcomeFragment_to_messageFragment"
            app:destination="@id/messageFragment" />
    </fragment>
    <fragment
        android:id="@+id/messageFragment"
        android:name="com.cookandroid.navigationcomponentexcercise.MessageFragment"
        android:label="fragment_message"
        tools:layout="@layout/fragment_message" >
        <action
            android:id="@+id/action_messageFragment_to_encryptFragment"
            app:destination="@id/encryptFragment"
            app:popUpTo="@id/welcomeFragment"
            app:popUpToInclusive="false" />
        <action
            android:id="@+id/action_messageFragment_to_anotherFragment"
            app:destination="@id/anotherFragment"
            app:popUpTo="@id/messageFragment"
            app:popUpToInclusive="true" />
    </fragment>
    <fragment
        android:id="@+id/encryptFragment"
        android:name="com.cookandroid.navigationcomponentexcercise.EncryptFragment"
        android:label="fragment_encrypt"
        tools:layout="@layout/fragment_encrypt" >
        <argument
            android:name="message"
            app:argType="string" />
    </fragment>
    <fragment
        android:id="@+id/anotherFragment"
        android:name="com.cookandroid.navigationcomponentexcercise.AnotherFragment"
        android:label="fragment_another"
        tools:layout="@layout/fragment_another" >
        <argument
            android:name="message"
            app:argType="string" />
    </fragment>
</navigation>

'MOBILE PROGRAMING' 카테고리의 다른 글

[모바일 프로그래밍] Listener를 이용한 두 프래그먼트 간의 통신 (0)	2025.11.17
[모바일 프로그래밍] 프래그먼트 간 통신 실습 (0)	2025.11.12
[모바일 프로그래밍] Fragment와 생명 주기 + 실습 (0)	2025.11.05
[모바일 프로그래밍] 암시적 Intent와 액티비티 생명 주기 (0)	2025.11.03
[모바일 프로그래밍] Activity와 Intent(양방향) (0)	2025.10.29

현재글[모바일프로그래밍] Safe Args (Fragment 간 데이터 전달)

소소한 지식 저장소

소소한 지식들을 기록하는 공간

Python, Design, frontend, java, inflearn, spring boot, Database, TypeScript, Network, Kotlin, Algorithm, Android, DL, docker, Spring, blockchain, CS, AI, GCP, OS,

Today :
Yesterday :

소소한 지식 저장소
